OpenLogPlot Plot Layout

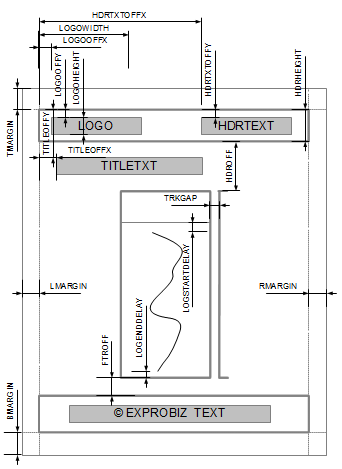

The OpenLogPlot plot page layout is shown below. These position and dimension values are all set in the
Template sheet in the PlotSetup area. See Template Sheet for details.
The header area contains a logo and some text. The position of each is fully under the user's control, as is the selection
of the logo image file and the header text. The header text is right-justified. Image files should be in a folder called "images" within
the OpenLogPlot folder in the user's Documents folder. The X and Y offset to the logo and the header text are LOGOOFFX, LOGOOFFY,
HDRTXTOFFX and HDRTXTOFFY respectively.
